Shell Assembly Fixture

Shell Assembly Fixture

BSE JOB 1737

Shell Assembly Fixture
Shell Assembly Fixture

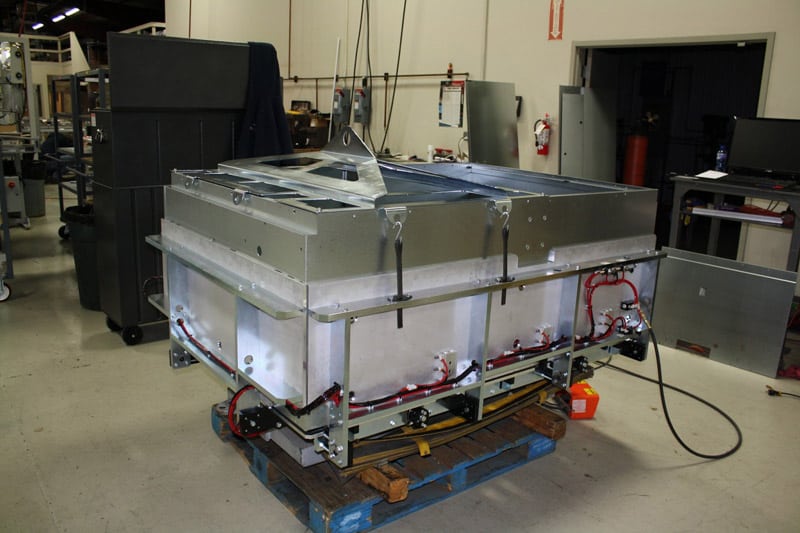

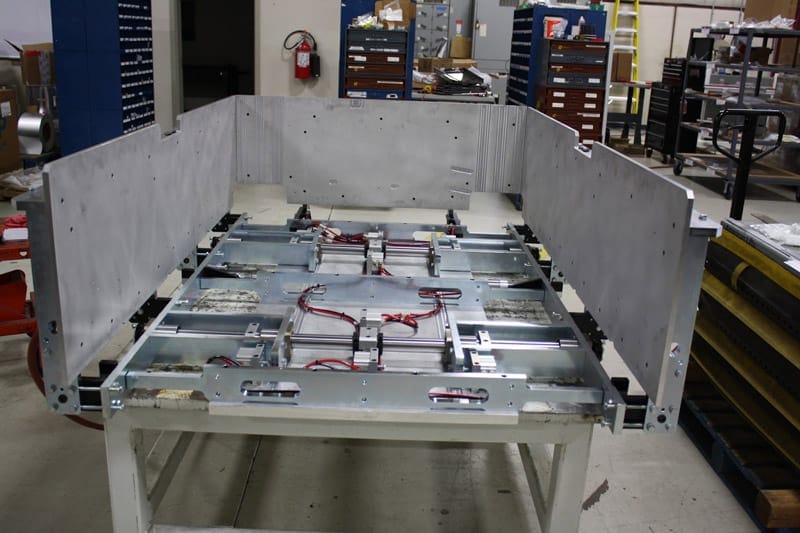

The fixture is designed to accommodate two different shell widths. The outer frame assembly is constructed to form a rigid steel framework to prevent any unwanted flexing. The inner side plates are aluminum and house the magnets. One side of the fixture slides in to allow a narrow assembly to be built. This slide has exceptional rigidity and allows for an easy changeover. An end plate supports the end of the shell assembly. A pop-up roller bed allows for easy removal of the assembled shell. An air manifold is included for air tool operation.
