Laser Mesasurement System

Laser Mesasurement System

BSE JOB 1716

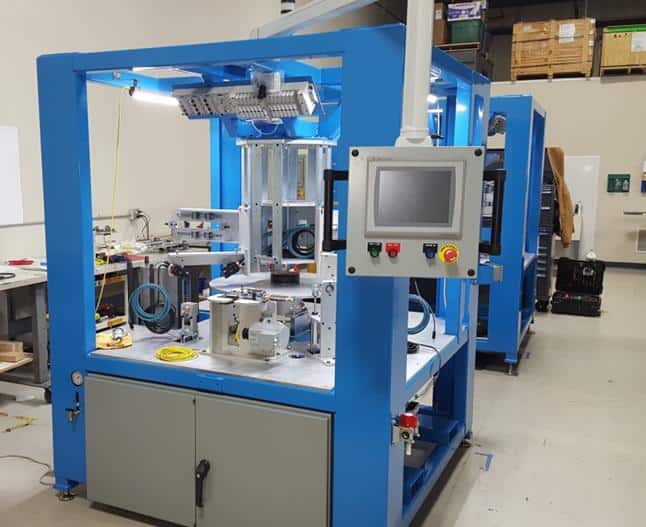

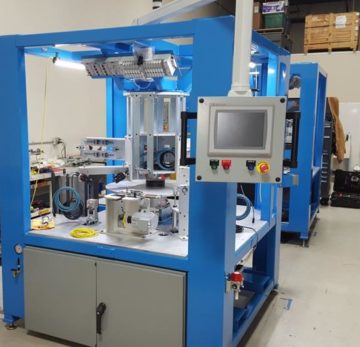

Laser Measurement with Trim & Flash Removal Machine
Laser Measurement with Trim & Flash Removal Machine

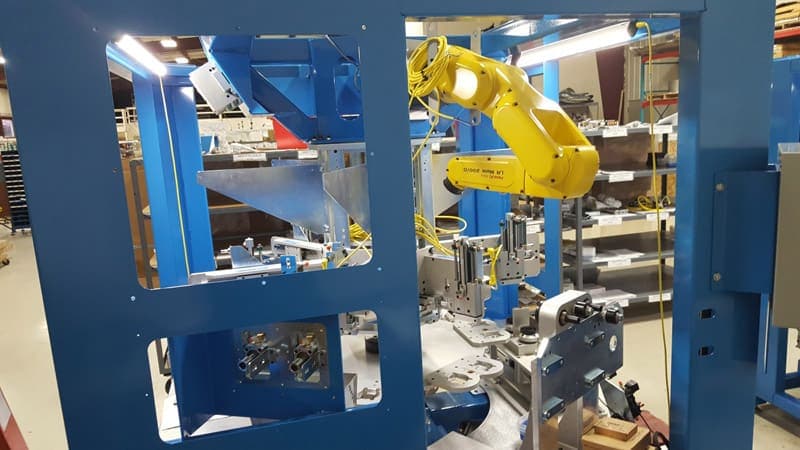

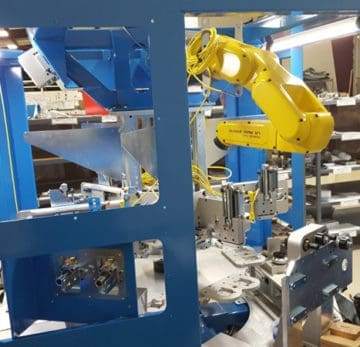

This station picks from the dial two seals at a time and places them onto a rotating spindle assembly. The fixed-mount laser heads inspect for a minimum of one rev at a velocity of one rev/sec. The spindles then shift 5 inches to present the second seal to the laser heads. The laser controller processes the measurements and provides a pass/fail of each seal. The seals are then placed back on the dial to be unloaded or rejected accordingly.
